A simple distance meter using STM Nucleo board and the HC-SR04 ultrasonic sensor.
In this simple simple example we use one STM NUCLEo board (STM32-F401RE) , the ArduTV and one sensor HC-SR04.

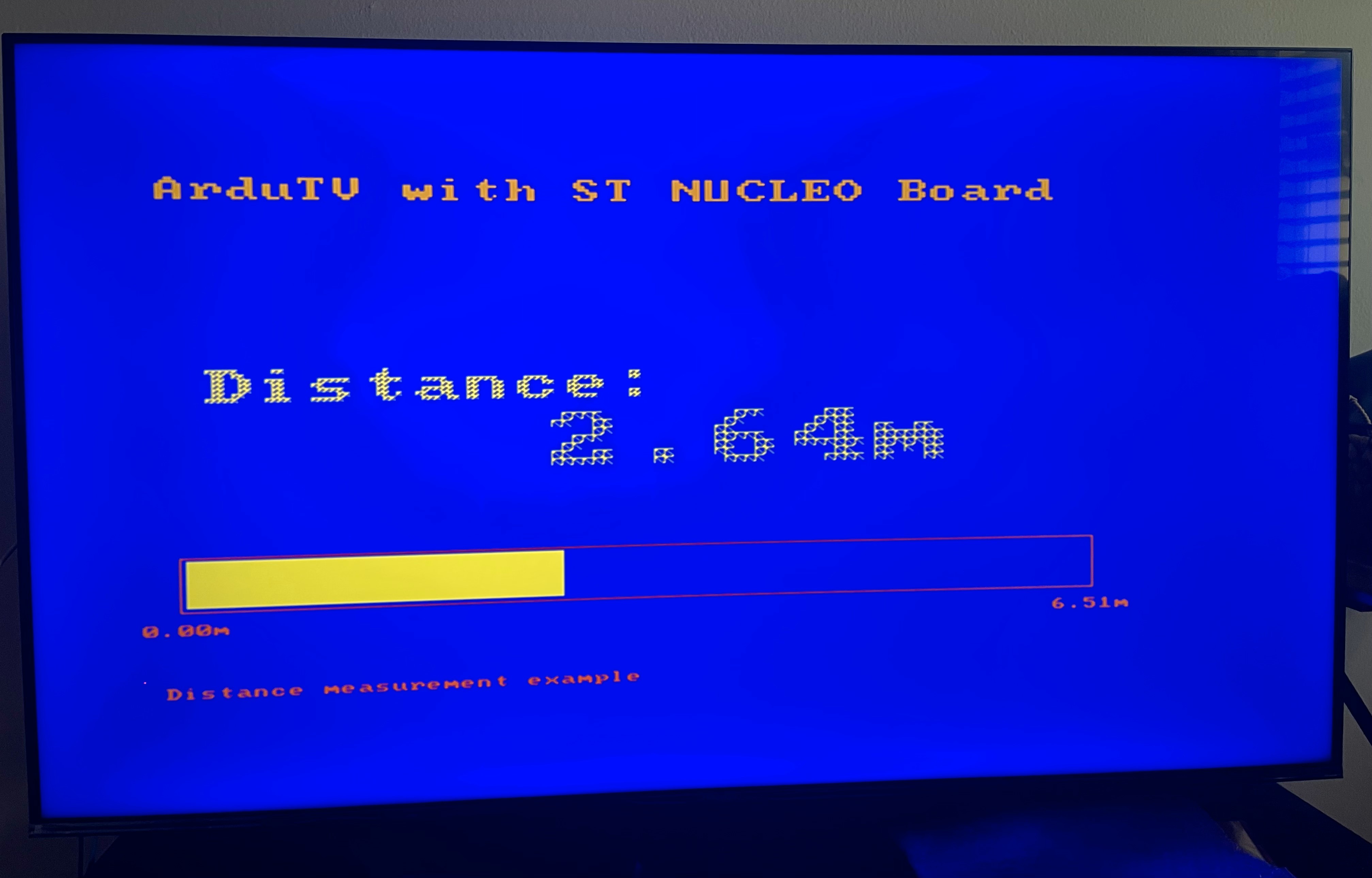

The output of the sensor is shown on television using ArduTV.HC-SR04 connections:
+5V --> +5V
GND--> GND
Trig --> D4
Echo--> D5

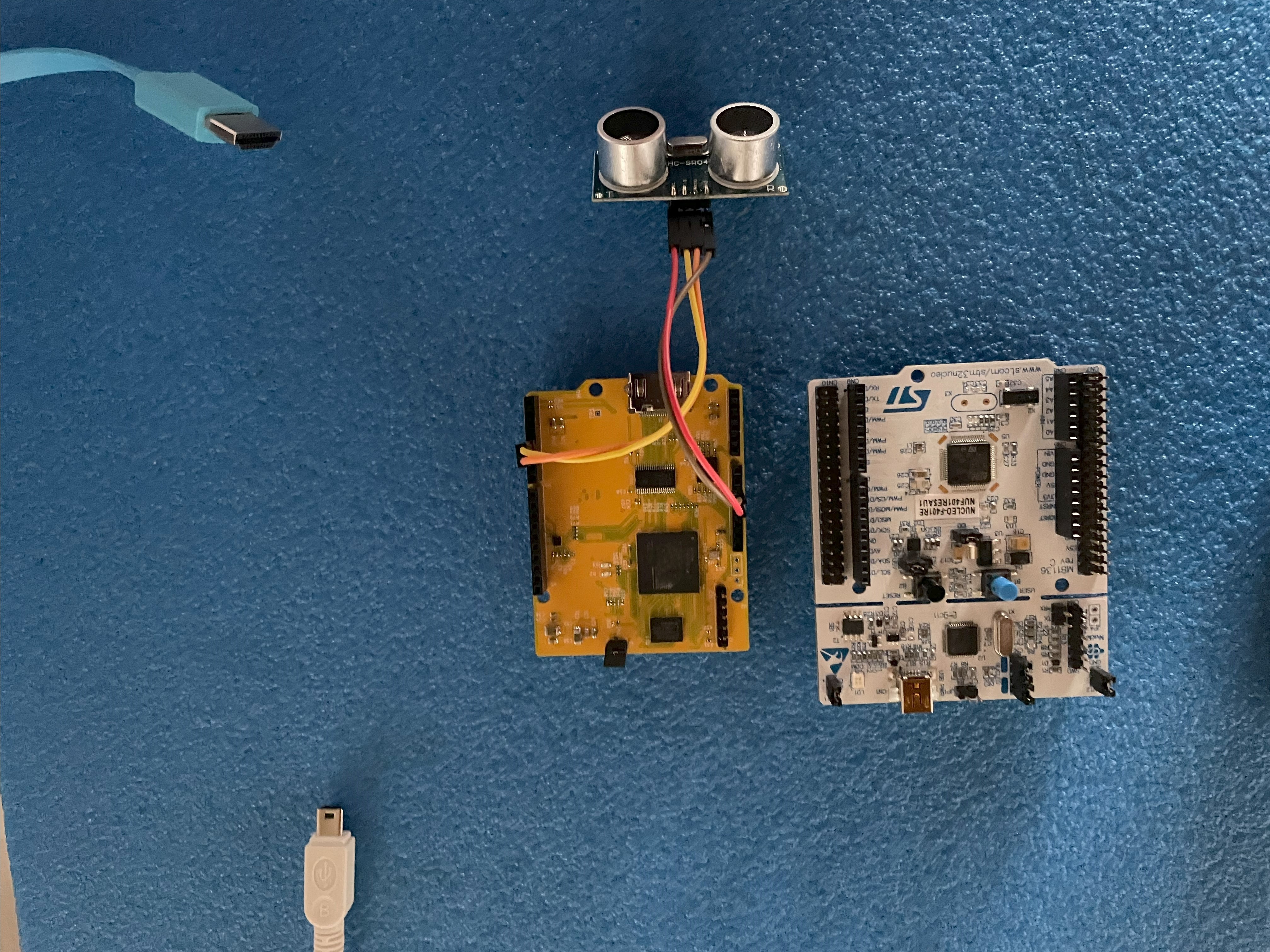

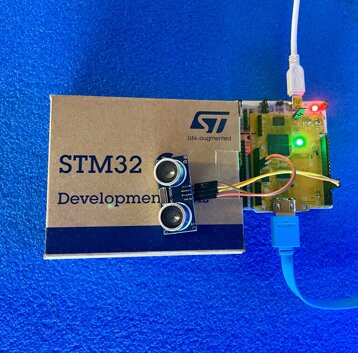

PLEASE WATCH THE PICTURES AND VIDEO AT THE END OF THE PAGE.
The code of the example
(Please note that part of this code is automatically generated by STM32CubeIDE, as used with this tool)
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
* Copyright (c) 2024 STMicroelectronics.
* All rights reserved.
*
* This software is licensed under terms that can be found in the LICENSE file
* in the root directory of this software component.
* If no LICENSE file comes with this software, it is provided AS-IS.
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "Ardutv.h"
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
SPI_HandleTypeDef hspi1;
TIM_HandleTypeDef htim1;
UART_HandleTypeDef huart2;
/* USER CODE BEGIN PV */
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_USART2_UART_Init(void);
static void MX_SPI1_Init(void);
static void MX_TIM1_Init(void);
/* USER CODE BEGIN PFP */
#define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
PUTCHAR_PROTOTYPE
{
/* Place your implementation of fputc here */
/* e.g. write a character to the USART1 and Loop until the end of transmission */
HAL_UART_Transmit(&huart2, (uint8_t *)&ch, 1, 0xFFFF);
return ch;
}
void DelayUS(uint32_t us) {
uint32_t durat = us * 16;
TIM1->CNT=0;
while (TIM1->CNT < durat);
}
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
static uint8_t runonce = 0;
float distance;
int duration_i,distance_i;
char car[3];
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_USART2_UART_Init();
MX_SPI1_Init();
MX_TIM1_Init();
/* USER CODE BEGIN 2 */
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_6, 1);
HAL_Delay(1000);
//char data[] = {"Hey Universe\n\r"};
HAL_TIM_Base_Start(&htim1);
int PinState=0;
ATV_BGColor(0,0,61);
ATV_PenColor(61,20,0);
ATV_Clear();
ATV_printString("ArduTV with ST NUCLEO Board", 60, 80,2);
ATV_PenColor(61,10,0);
ATV_printString("Distance measurement example", 60, 400,1);
ATV_printString("0.00m", 50, 360,1);
ATV_printString("6.51m", 490, 360,1);
ATV_Rect(67,318,444,35,0);
ATV_PenColor(31,30,10);
ATV_printString("Distance:", 80, 200,3);
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
if (runonce != 1)
{
printf("Hello World\n\r");
duration_i=0;
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_5, 0);//D4
DelayUS(2);
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_5, 1);
DelayUS(20);
//printf("Ready\n\r");
HAL_GPIO_WritePin(GPIOB, GPIO_PIN_5, 0);
while(HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_4)!=GPIO_PIN_SET);// da cambiare //D5
PinState=HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_4);
// printf("Read\n\r");
while(PinState!=GPIO_PIN_RESET)
{
duration_i++;
//DelayUS(1);
if (duration_i>38000)
break;
PinState=HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_4);
PinState=HAL_GPIO_ReadPin(GPIOB, GPIO_PIN_4); //Added just for "calibration"
//PinState=1;
}
printf("Exit\n\r");
printf("Duration: %d \n\r",duration_i);
distance=(duration_i*.0343)/2;
//distance_i=distance;
printf("Distance: %f \n\r",distance);
distance_i=distance*1;
ATV_PenColor(0,0,61);
ATV_Rect(70,320,440,30,1);
ATV_PenColor(31,30,10);
ATV_Rect(70,320,distance_i/1.5,30,1);
car[0]=distance_i/100+48;
distance_i%=100;
car[1]=(distance_i)/10+48;
distance_i%=10;
car[2]=distance_i+48;
ATV_printchar(car[0], 240+(5*8*0), 230,5);
ATV_printchar('.', 240+(5*8*1), 230,5);
ATV_printchar(car[1], 240+(5*8*2), 230,5);
ATV_printchar(car[2], 240+(5*8*3), 230,5);
ATV_printchar('m', 240+(5*8*4), 230,5);
HAL_Delay(50);
//runonce = 1;
}
}
